Pulley V Grooving Tools (GPV) - T41, T41H, T41R - 4 teeth on 1 end
| T41 / T41H / T41R |
|

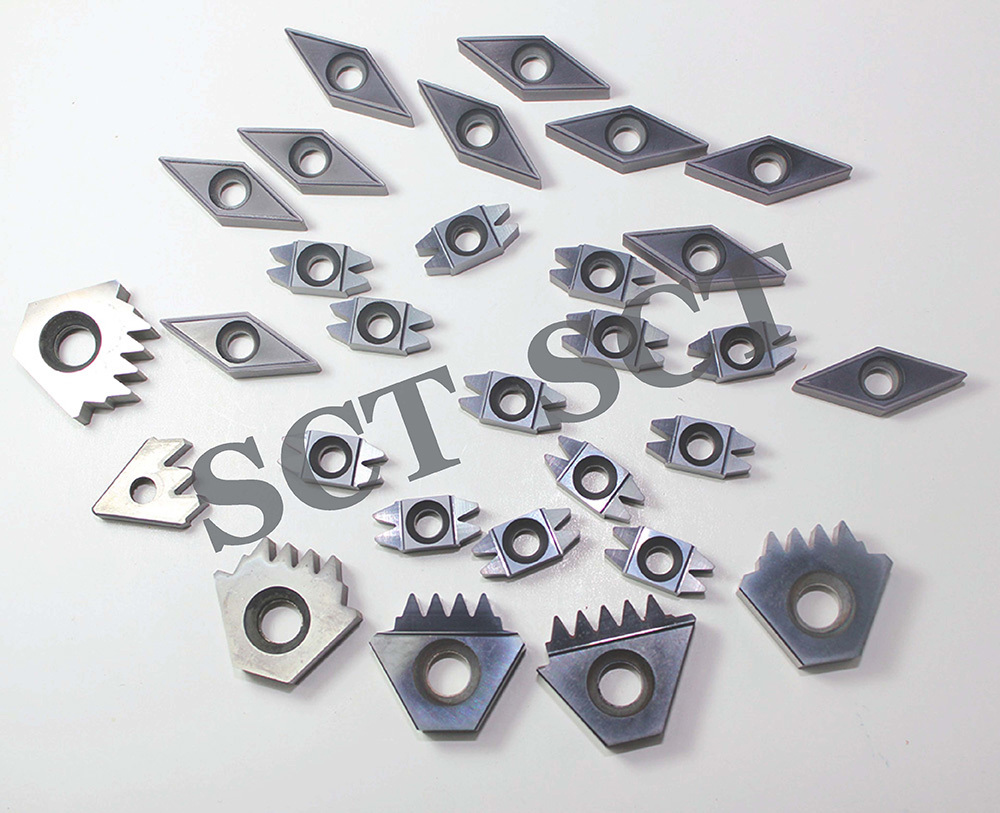

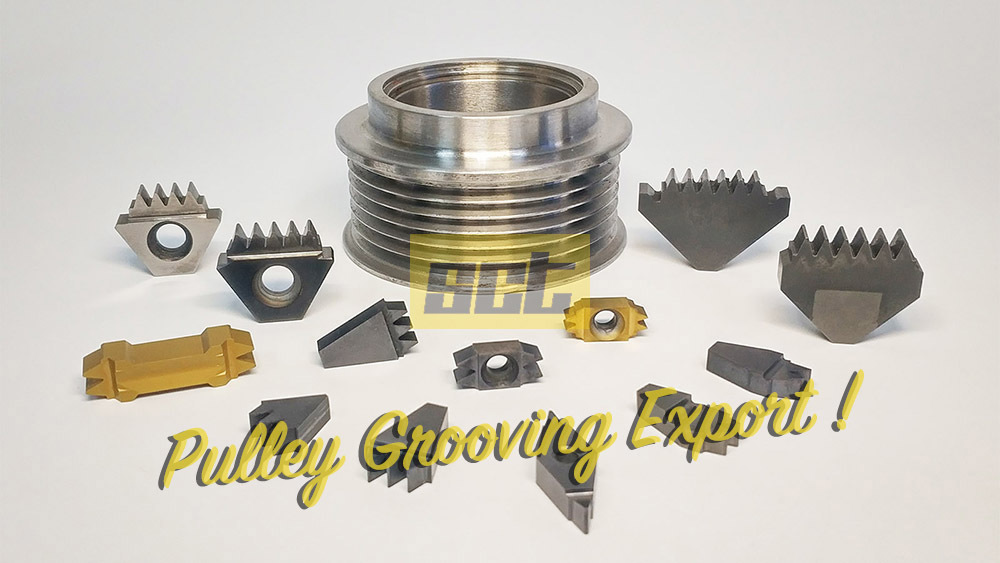

" T41 " series pulley grooving insert is a pulley V-grooves machining insert with FOUR teeth on its ONE end.
It is suitable for grooving the pulleys with 4, 8, 12 or even more V-grooves.
Basically, T41 insert with a bolt hole is called " T41H " insert.
Furthermore, T41 insert with raked angle is called " T41R " insert.
|
| |
Researching and developed by SCT, the brand new automotive belt pulley grooving inserts are receiving good reputation among our worldwide customers: |
| |
• These inserts are made by solid carbide materials.
• Inserts are especially designed and produced for cutting V grooves in belt pulleys.
• ONE-TIME cutting for precise machining of V grooves in pulleys.
• Greatly improve belt pulleys’ machining accuracy and surface roughness.
• Largely help reduce time in changing of different inserts.
• Exponentially shorten the machining time on pulleys have multiple V grooves.
• Make large progress of working efficiency and on product quality.
|
  |
| Insert Type |
Shape |
Tooth / Ends |
Performance |
| T41 |
|
4/1 |
|
| T41H |
|
4/1 |
| T41R |
|
4/1 |
|
| |

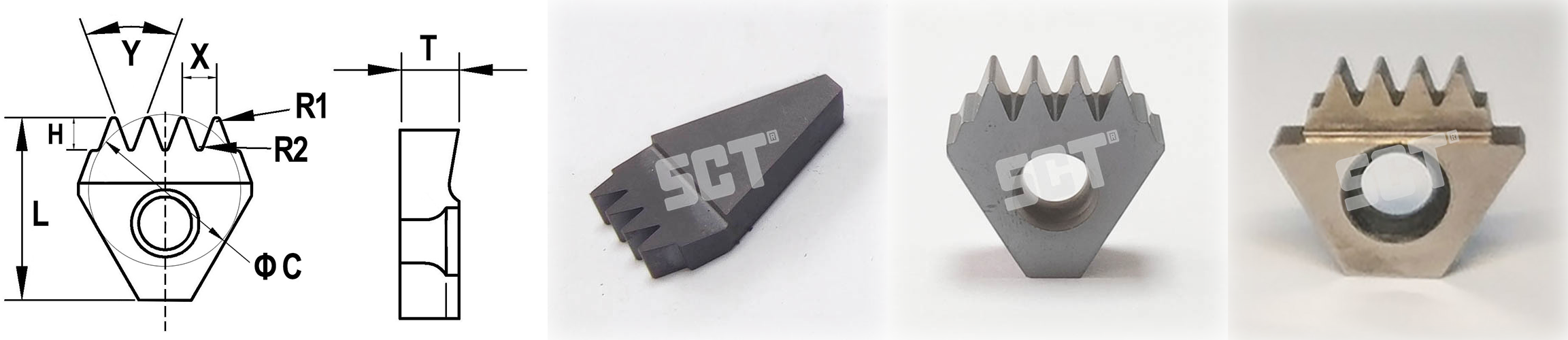

| Insert List |
 |
| Part Numbers |
Dimensions (mm) |
Workpiece Code |
| Number of Teeth |
Y° |
H |
C |
X |
L |
T |
R1 |
R2 |
Hardened Steel |
Cast Iron |
Stainless Steel |
Aluminum / Bronze |
| PDL-T41-N220614-40356R40R30 |
4 |
40° |
3.54 |
12.7 |
3.56 |
18.55 |
3.65 |
0.4 |
0.3 |
RTP115 |
RTP330 |
RTP225 |
RTP000 |
| PDL-T41-N160514-40234R20R30 |
4 |
40° |
2.25 |
9.525 |
2.34 |
13.79 |
3.65 |
0.2 |
0.3 |
RTP115 |
RTP330 |
RTP225 |
RTP000 |
| *** Notes: different insert radius, cutting length, tooth pitch, tooth height ... etc, are on end user's request. |
|
 |
| |

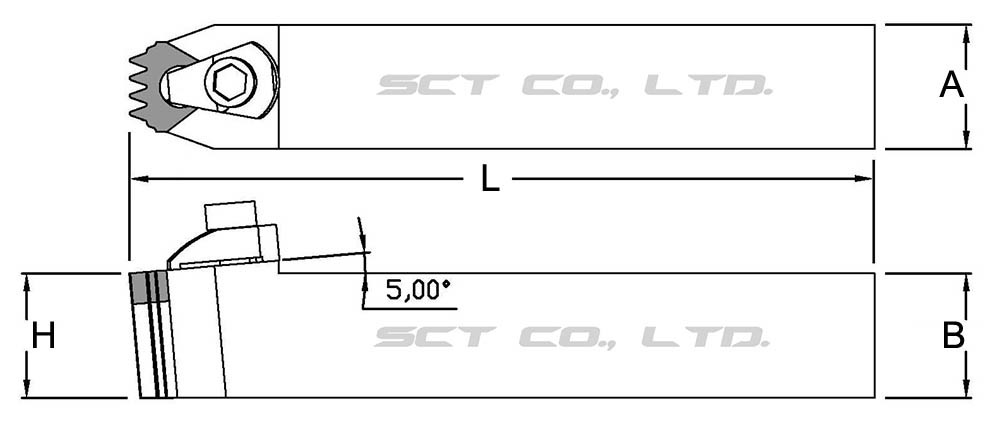

| Tool-Holder List |
 |
| Part Number |
Dimensions (mm) |
| A |
B |
L |
H |
X |
Thread |
| MPDLTN4-403562525M15 |
25 |
25 |
150 |
25 |
3.56 |
M15 |
| MPDLTN4-402342525M12 |
25 |
25 |
150 |
25 |
3.56 |
M12 |
| *** When pairing pulley grooving insert with its tool-holder, please ask SCT sales team for suggestions. |
|
Pairing with SCT 's pulley grooving inserts, our tool-holders are made by 42CrMo.
| EU |
USA |
Germany |
Japan |
France |
England |
Italy |
Spain |
China |
Sweden |
Finland |
Russia |
Inter |
| EN |
- |
DIN,WNr |
JIS |
AFNOR |
BS |
UNI |
UNE |
GB |
SS |
SFS |
GOST |
ISO |
| 42CrMo4 (1.7225) |
4140 |
42CrMo4 |
SCM440H |
42CD4 |
708M40 |
42CrMo4 |
40CrMo4 |
42CrMo |
2244 |
42CrMo4 |
35KHM |
42CrMo4 |
| 4142 |
|
|
|
CFS11 |
|
F1252 |
|
|
|
38KHM |
|
SCT suggest all our custoemr to use our tool-holder to pair our inserts.
That not only help promote grooving efficiency and grooving precision, but also help extend inserts' working life. Below is the production process:
42CrMo Forging → Tempering → Rough Processing → Quenching → Fine Machining
→ Surface Blackening → Packaging → Warehousing
|
|
| |
| |
