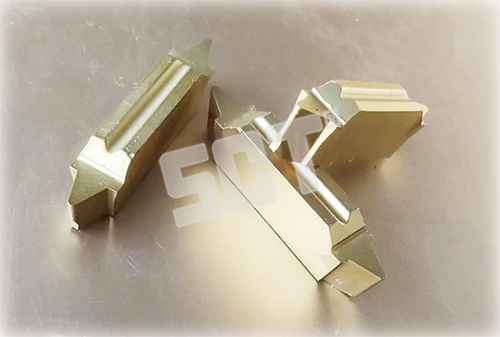

" M12  " series pulley grooving insert is a pulley V-grooves cutting insert
with 1 tooth each on its 2 ends.
It is especially using to groove deeper position of pulleys and avoid the machining interference.
You will find more inserts, such as " V12  " " VT13  " and " S14  "
in SCT's pulley grooving insert family.
|
| |
Researching and developed by SCT, the brand new automotive belt pulley grooving inserts are receiving good reputation
among our worldwide customers:
|
| |
• These inserts are made by solid carbide materials.
• Inserts are especially designed and produced for cutting V grooves in belt pulleys.
• ONE-TIME cutting for precise machining of V grooves in pulleys.
• Greatly improve belt pulleys’ machining accuracy and surface roughness.
• Largely help reduce time in changing of different inserts.
• Exponentially shorten the machining time on pulleys have multiple V grooves.
• Make large progress of working efficiency and on product quality.
|
|
| Insert Type |
Shape |
Tooth / Ends |
Performances |
| M12 |
|
1/2 |
- M12 series inserts have advantage of small cutting force.
- This insert avoids machining interference when making deeper grooves.

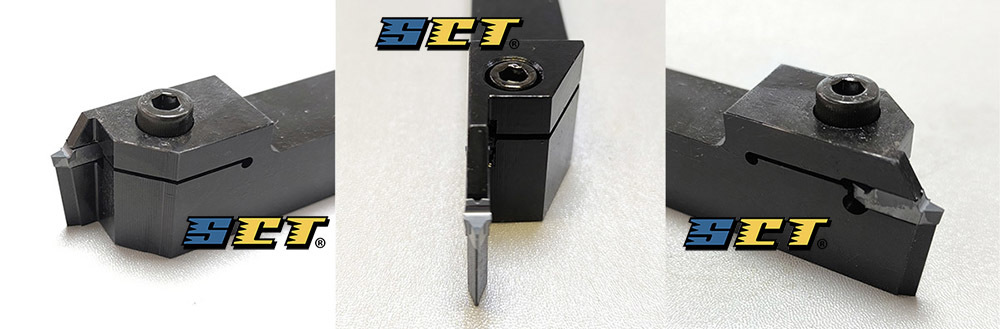

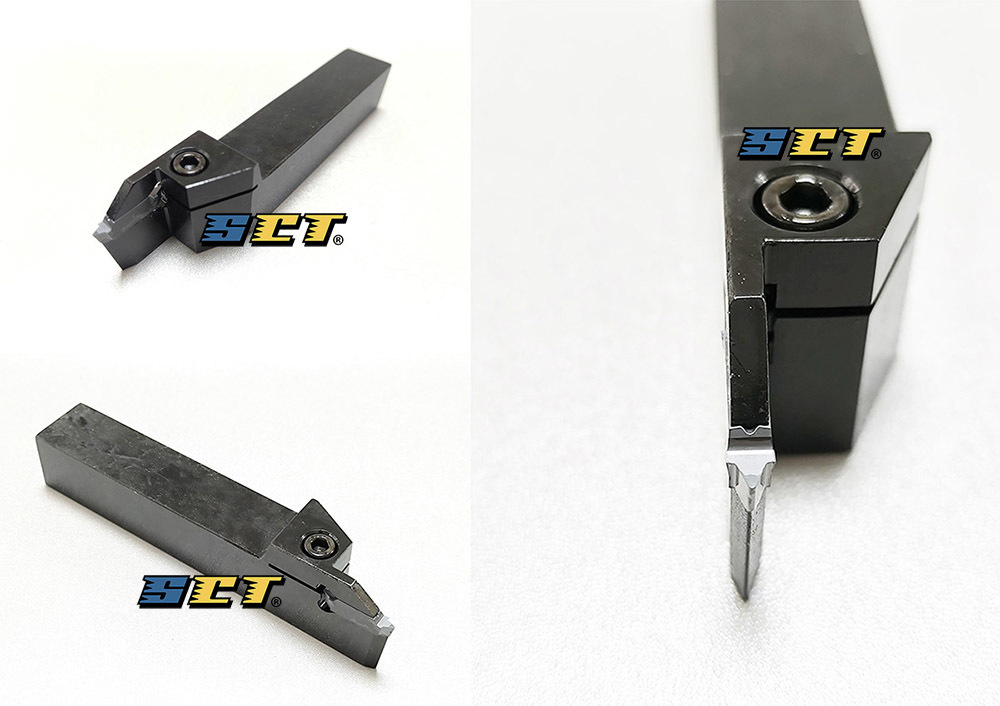

- Tool-houlder is universal and is general type for all CNC inserts.
|
| |
| INSERT LIST |
 |

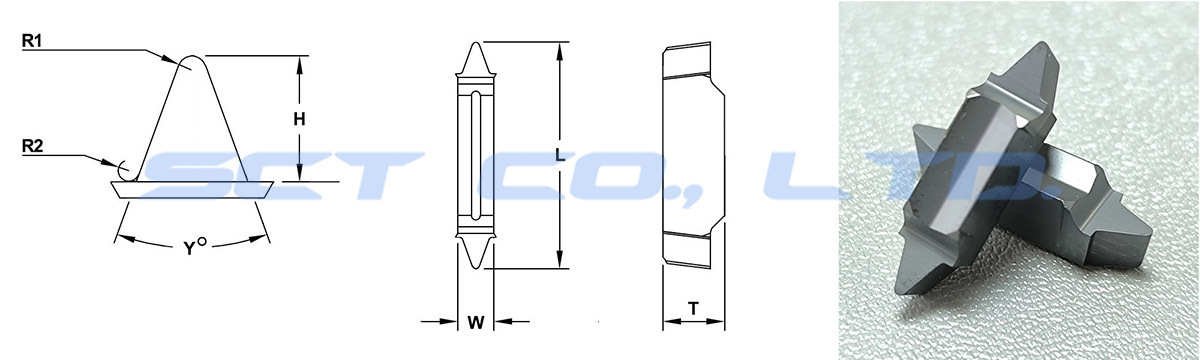

| Insert Number |
Dimensions (mm) |
Grades |
| Hardened Steel |
Cast Iron |
Stainless Steel |
Aluminum / bronze |
| ( PVD coated) |
Y° |
W |
H |
L |
T |
R1 |
R2 |
RTP115 |
RTP330 |
RTP225 |
RTP000 |
| PDL-M12-40-12356R40R30 |
40° |
4.00 |
3.54 |
25.50 |
7.00 |
0.40 |
0.30 |
• |
• |
• |
• |
| PDL-M12-40-12356R45R30 |
40° |
4.55 |
3.45 |
19.00 |
5.58 |
0.45 |
0.30 |
• |
• |
• |
• |
| PDL-M12-40-12356R42R48 |
40° |
4.00 |
3.10 |
25.40 |
5.35 |
0.42 |
0.48 |
• |
• |
• |
• |
| PDL-M12-40-12356R45R35 |
40° |
4.55 |
3.35 |
19.00 |
5.58 |
0.45 |
0.35 |
• |
• |
• |
• |
| PDL-M12-40-12356R40R00 |
40° |
4.00 |
4.75 |
25.00 |
7.00 |
0.40 |
0.00 |
• |
• |
• |
• |
| ... |
... |
... |
... |
... |
... |
... |
... |
... |
... |
... |
... |
| *** Notes: different insert radius, cutting length, tooth pitch, tooth height ... etc, are on end user's request. |
|
|
